LoRa PCB Antenna Simulation




LoRa PCB Antenna exported from KiCad and simulated using OpenEMS.
This video shows a Gaussian excitation applied with a centre frequency of 915MHz & span of +-100MHz
You can see it resonate when it hits the centre frequency.

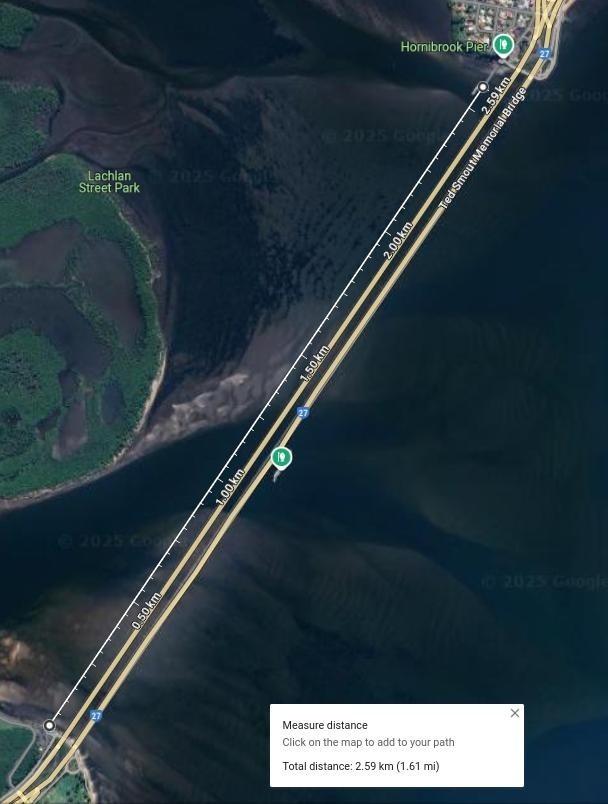

LoRa PCB Antenna - LoS Range Test


Successfully completed a 2.6 km LOS Range Test
